Brand: Wakefield Acoustics

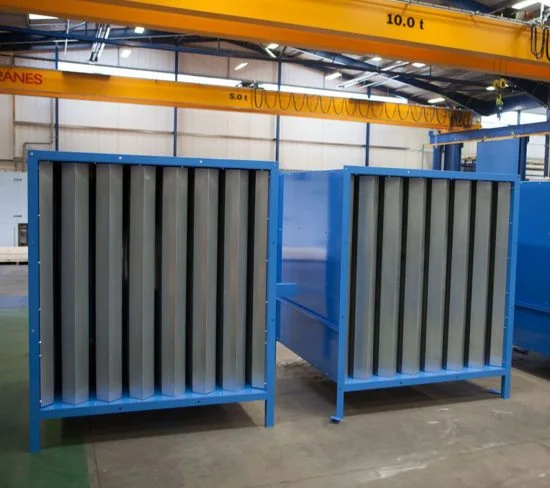

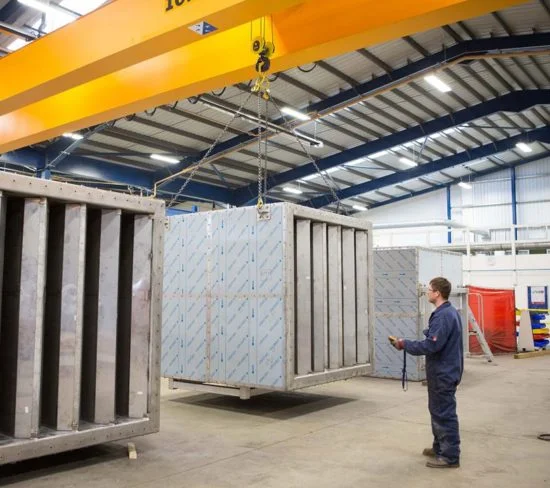

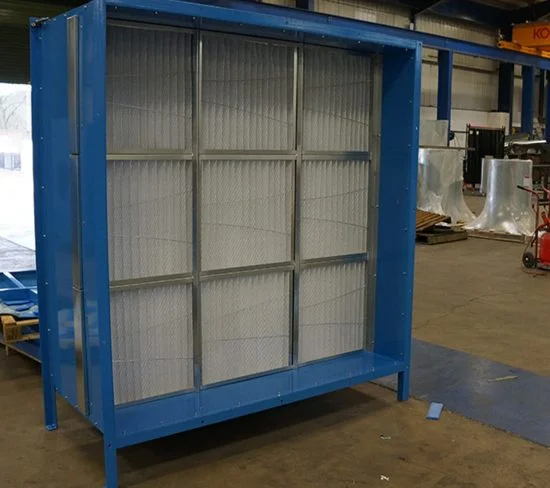

Rectangular Splitter Attenuator

Rectangular Splitter Attenuator

Wakefield Acoustics design software allows custom selection of rectangular splitter attenuators to suit all air and gas movement applications.

PLANTROOM ATTENTUATION
From smaller attenuators for dust extraction plant, through to large attenuators on primary & secondary air fans used in power generation, we work closely with OEM’s, end users, contractors and consultants to address complex noise problems across a wide range of industries. Each attenuator is cost-effectively designed to meet the most demanding of customer noise specifications.

We offer several type of attenuator designs dependent on application and structural requirements, from light gauge screwed construction through to a heavy plate welded units.

All our attenuators have aerodynamic inlet fairings to reduce pressure loss, mineral wool infill protected by either a glass tissue scrim spun bound poly cotton or a woven glass cloth lining and a final layer of perforated sheet steel protection.

Inlet air filters are commonly used in conjunction with our range of rectangular splitter attenuators where a common filter bank is installed prior to the acoustic baffles. Access to the filters can be gained either through a side access door fitted into the filter plenum or via the end of the attenuator should space permit.

FEATURES & BENEFITS

  • Melinex moisture resistant membrane for damp process air
  • Aerodynamic ‘V’ noses and ‘Bull’ noses to reduce pressure loss
  • Operating temperatures in excess of 250°C
  • Combined inlet filter silencers complete with filter slides and cells
  • Transition pieces
  • Weather cowls and louvres
  • VARIOUS FINISHES INCLUDE:
    • Polyester powder coated
    • Wet paint systems
    • Plastic coated steel

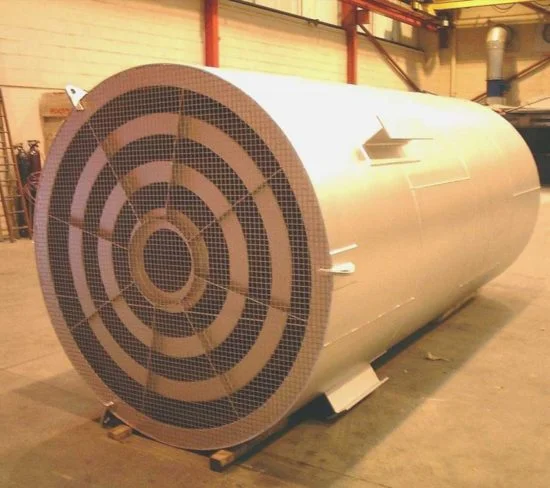

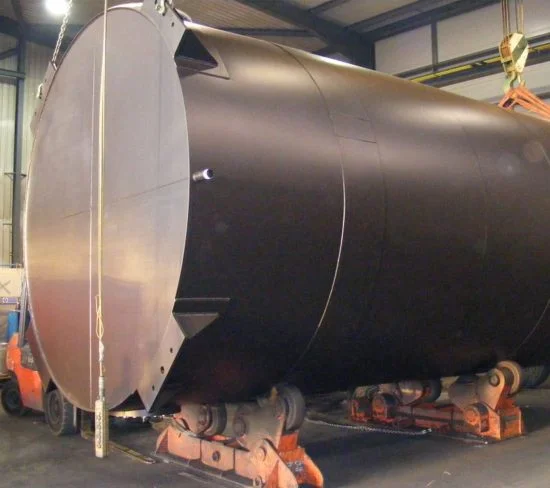

Process Air Gas Silencers

Process Air Gas Silencers

Typically utilized for rotary blades or centrifugal blowers, Wakefield Acoustics offers a wide range of custom-designed process air or gas silencers. Each silencer is cost-effectively designed to meet the most demanding of customer noise specifications.

We offer several type of absorptive silencer construction dependent on application and structural requirements, from light gauge welded construction through to heavy plate welded construction.

INDUSTRIAL SILENCER
Dependent upon the level of acoustic performance required silencers can be designed with an absorptive outer layer, thus not presenting additional pressure onto the system. Where a high level of noise reduction is required, a central acoustic pod would normally be installed.

Given the high heat levels which can sometimes be generated in process air and gas lines, the silencers would normally be treated with a heat-resistant paint finish after fabrication.

Wakefield Acoustics is able to undertake pressure testing of silencers to ensure compliance with project requirements.

FEATURES & BENEFITS

  • Central absorptive pod for improved attenuation
  • Aerodynamic cones and hemi-spherical end caps to reduce pressure loss
  • Fully welded and gas tight
  • Melinex moisture resistant membrane for damp process air
  • Operating temperatures in excess of 250°C
  • Support feet, weather cowls and mesh guards
  • VARIOUS FINISHES INCLUDING:
    • Polyester powder coated
    • Various wet paint systems

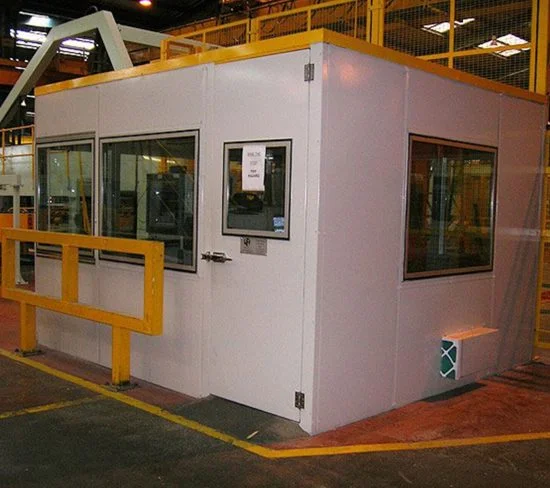

Noise Havens

Noise Havens

In certain circumstances, it is not always feasible to treat the noise at source, particularly in environments where there are multiple noise sources contributing to the overall exposure experienced by operators. In such cases, noise havens can be installed which are designed to offer respite for operators in noisy environments.

Wakefield Acoustics designs, manufactures and installs a wide range of noise havens, and works closely with OEM’s, end users, contractors and consultants to address complex noise problems across a wide range of industries. Each noise haven is cost-effectively designed to meet the most demanding of customer noise specifications.

Wakefield Acoustic offers several types of noise haven construction depending on application and structural requirements, from modular panel to panel constructions through fully framed factory-assembled fabrications for ease of installation on site.

FEATURES & BENEFITS

  • Single and double leaf, hinged and sliding doors for personnel access
  • Glazed viewing panels
  • Fan-assisted ventilation systems
  • Natural, free-flow, ventilation systems
  • Stand-alone air conditioning units
  • Internal lighting
  • VARIOUS FINISHES INCLUDING:
    • Polyester powder coated
    • Wet paint systems
    • Plastic coated steel

NOISE HAVENS FAQS

When it’s not practical to enclose noisy machinery or other noise sources, the next option is to create a respite space for the staff in noisy environments. These are called acoustic noise havens.

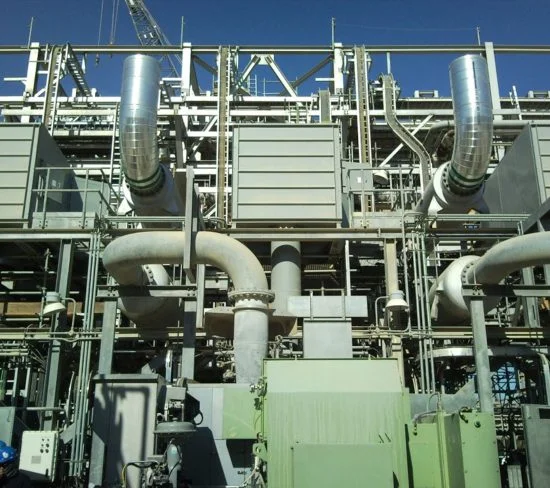

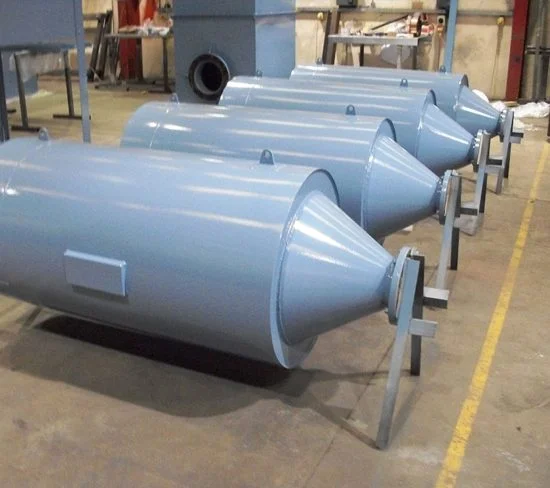

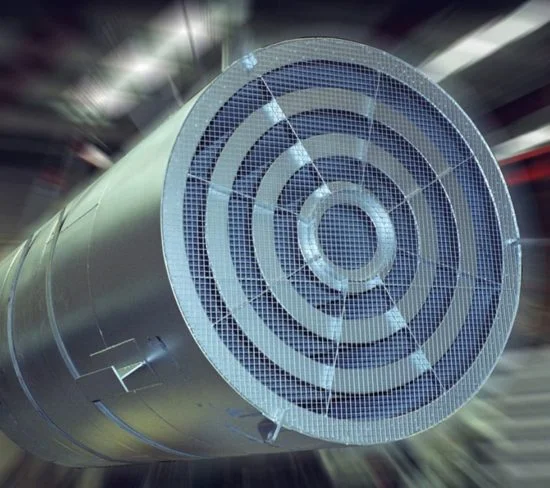

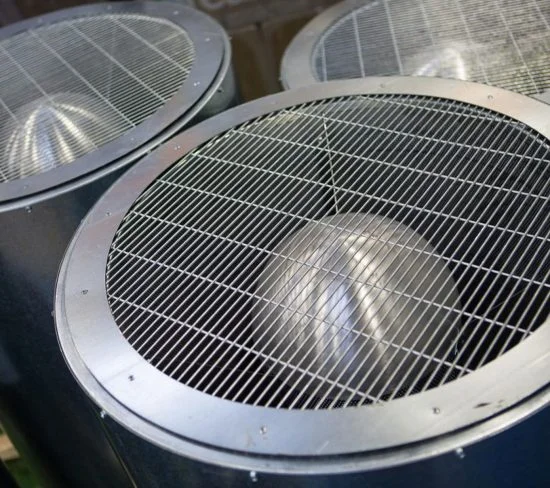

Circular Attenuator

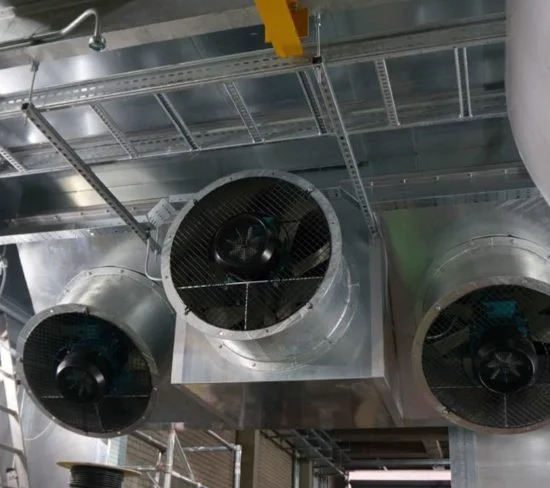

Circular Attenuator

Wakefield Acoustics designs, manufactures and installs circular attenuators to suit most air and gas movement applications.

CIRCULAR SILENCERS
Whether the application is for small circular silencers used within dust extraction systems or for large industrial air fans or blowers our selection data is applicable to all.

Wakefield Acoustic offers a multitude of attenuator designs and constructions.

Our products can be fabricated from pre-galvanized or stainless steel sheet with sealed external casings. Where subject to high pressures, or a low level of leakage is required, casings would be formed from thicker steel plate, fully welded. Wakefield Acoustics is able to offer various forms of NDT testing and pressure testing of our products.

Along with our circular attenuators we are also able to supply a variety of weather hoods and cowls where required.

FEATURES & BENEFITS

  • Light gauge pre-galvanized steel or stainless steel sheet casings and proprietary flanges
  • Heavy plate welded construction in mild steel or stainless steel 304 and 316L
  • Melinex moisture-resistant membrane for damp process air
  • Transition pieces
  • Weather cowls
  • VARIOUS FINISHED INCLUDING
    • Polyester powder coated
    • Epoxy paint
    • Various wet paint systems

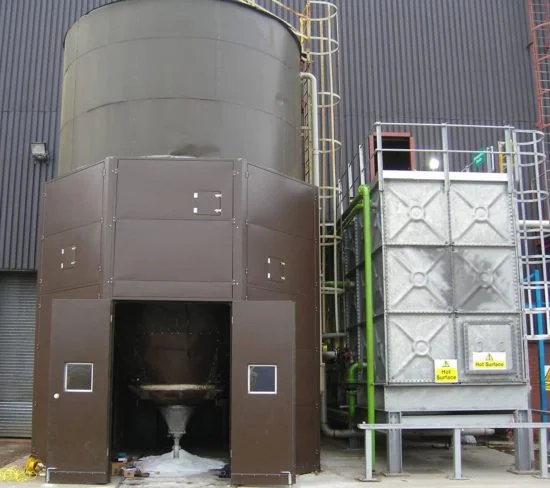

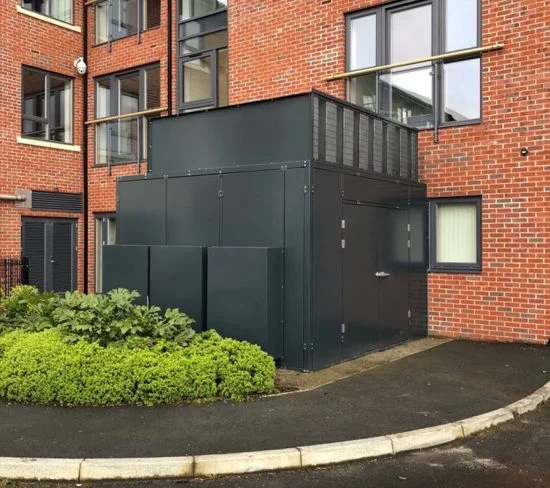

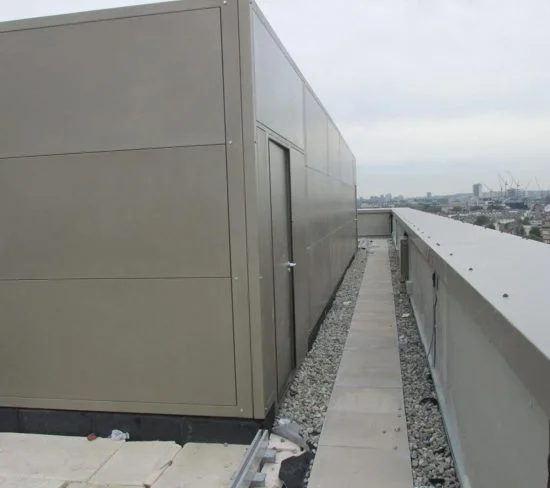

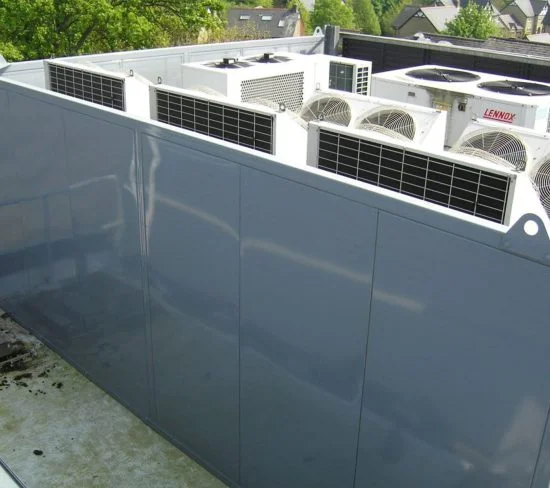

Acoustic Plant Screens

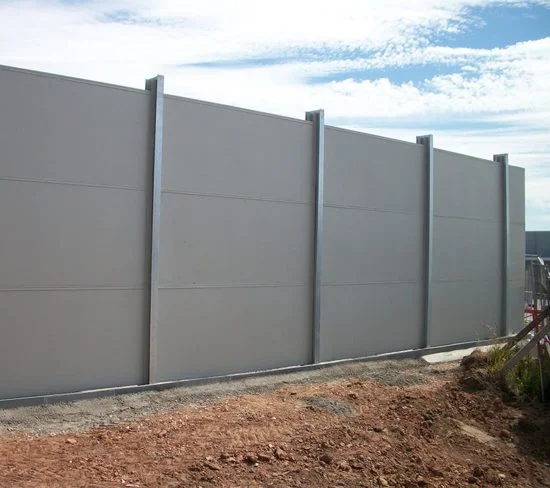

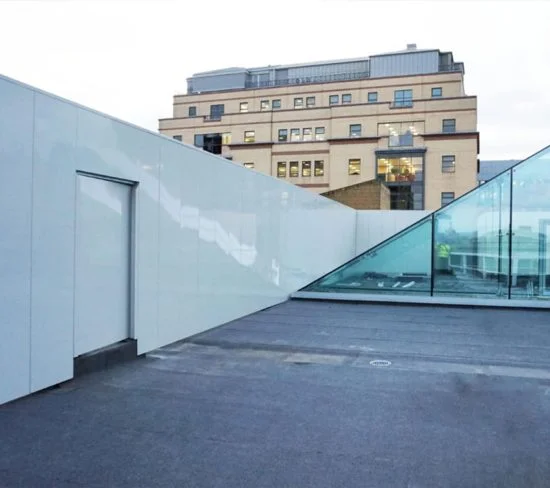

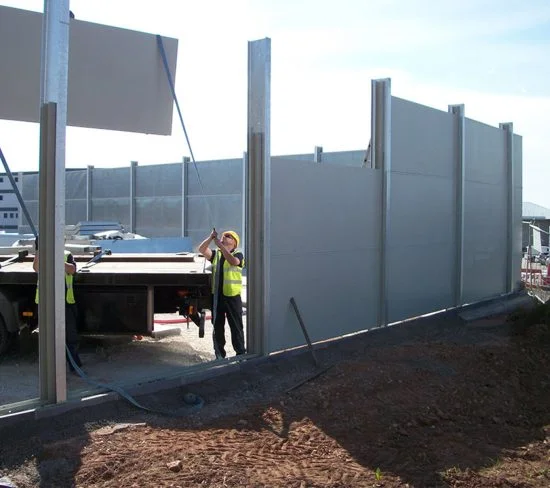

Acoustic Plant Screens

Wakefield Acoustics design, manufacture and install a range of acoustic plant screens for industrial and commercial applications.

In many instances, it is not always practical to install full acoustic enclosures to reduce noise emissions. This can be due to ventilation requirements, or sometimes the sheer size or complexity of the noise source. In these instances, an acoustically absorbent screen or acoustic barriers can be erected to reduce sound transmission, which absorbs noise to provide a high level of noise reduction.

INDUSTRIAL ACOUSTIC SCREEN
We work with clients to solve noise problems across a number of industries, from industrial manufacturing facilities to contractors with acoustic screens for construction sites on new commercial and residential developments. Our acoustic screen solutions are cost-effectively designed to meet the most challenging of acoustic requirements.

ACOUSTIC SCREENS CONSTRUCTION
Wakefield Acoustics premium acoustic plant screen designs are tailored to suit the particular application, size and site location. Our constructions range from a pre-assembled modular build, through to site-built panel screens with integrated support steelwork. Please refer to below for details of optional features of our screens. Additional information is available in the downloadable product catalog.

Acoustic screens make an ideal noise reduction solution for mechanical plant equipment, shielding excessive noise between operating areas and noise-sensitive areas.

Our full range of acoustic plant screens has been independently tested in accordance with BS EN ISO 10140-2:2010 ‘International Standard Method for Measurement of Airborne Sound Insulation of Building Elements’ to determine Sound Reduction Indices.

FEATURES & BENEFITS

  • Pre-galvanized mild steel self color
  • Stainless steel self color
  • Polyester powder coated
  • Wet paint systems
  • Plastic coated steel
  • Hinged and lift-off access panels
  • Glazed viewing panels
  • Fan-assisted ventilation systems
  • Single and double leaf, hinged and sliding doors for personnel access

ACOUSTIC PLANT SCREENS FAQS

Acoustic screens are designed to reduce noise levels when it is not practical to install full acoustic enclosures.

Acoustic Materials

Acoustic Materials

In addition to our wide range of acoustic products, Wakefield Acoustics also supplies a wide range of carefully selected materials and acoustic blankets. These products have been chosen not just for their acoustic performance but in some cases for their thermal conductivity and anti-static properties.

Our range of materials includes various types of acoustic foam and damping sheets, along with composite products that are used to create acoustic ‘blankets’ where a minimal reduction is required from industrial machinery. Acoustic blankets typically comprise a mass barrier core and acoustically absorbent insulation, which are stitched into a flexible outer PVC-coated polyester sheet. The blankets would normally be fitted with eyelets or Velcro strips to allow ease of installation or fitting.

Acoustic materials are sometimes installed in conjunction with our acoustic enclosure range and typical uses would be acoustic ‘skirts’ formed around a machine skid arrangement, or acoustic ‘curtains’ to close off conveyor apertures through the side wall of an enclosure.

FEATURES & BENEFITS

TYPES OF MATERIALS THAT WE CAN PROVIDE ARE LISTED BELOW:

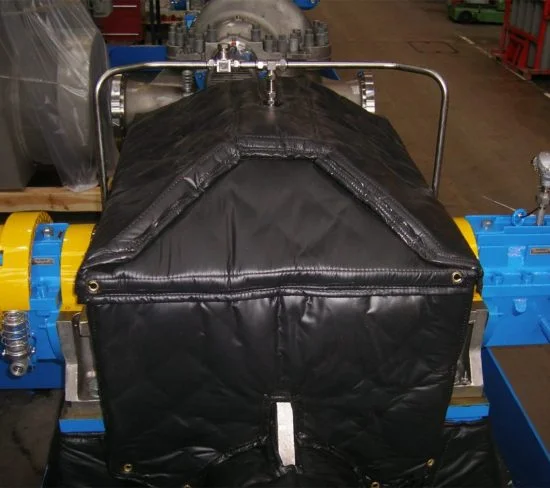

  • Acoustic blankets
  • Pipe and duct lagging
  • Industrial wall lining
  • Acoustic Foams
CECO Environmental

APPLICATIONS

  • The reduction of noise breakout from machinery and pipework where the performances required do not dictate use of a paneled enclosure system.
  • The introduction of acoustic absorption into highly reverberant areas where it is not practical or feasible to treat the noise at source. Such inclusions if carefully and correctly designed can effectively reduce the noise levels by several decibels.

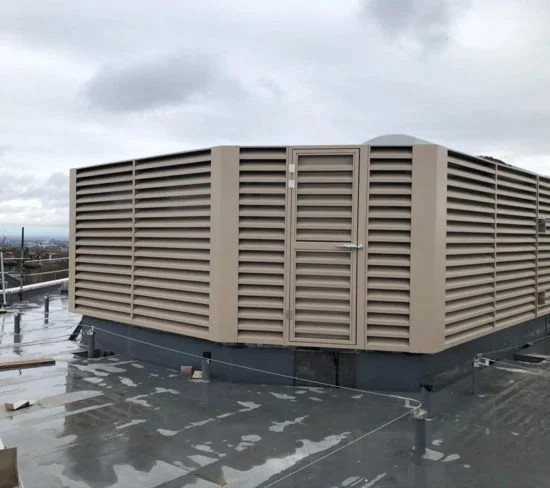

Acoustic Louvres

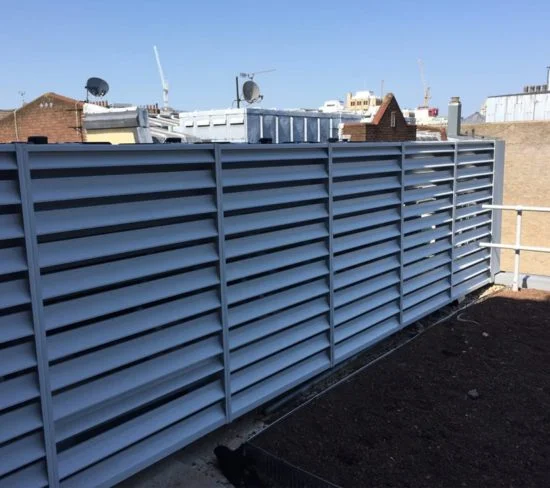

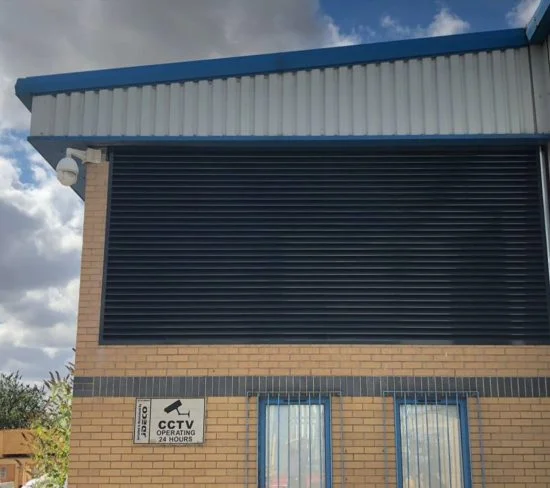

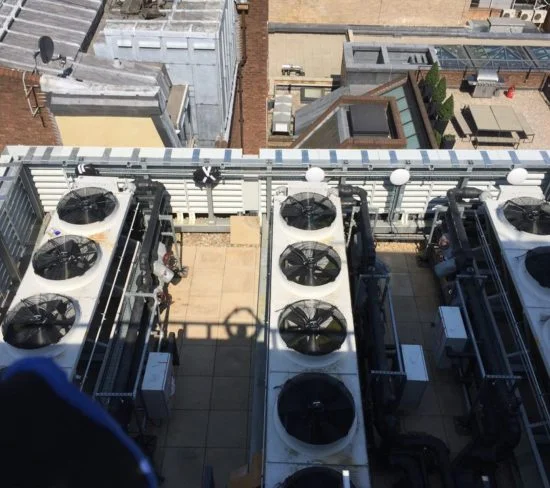

Acoustic Louvres

Wakefield Acoustics’ range of acoustic louvres has been specifically designed to reduce noise from externally mounted plant and equipment, and general ventilation systems.

We’re one of the UK’s most trusted acoustic louvre suppliers with over 40 years’ experience, and we’ve also installed acoustic louvres across the globe.

ACOUSTIC VENTILATION LOUVRES
In order to reduce noise emissions from ventilation systems serving buildings and process equipment, acoustic louvres are an ideal solution offering a level of weather protection in conjunction with noise reduction. Acoustic ventilation louvres are also ideal for use as barriers or enclosures around plant items which require a high level of airflow is required, in conjunction with noise reduction.

Wakefield Acoustics work closely with end users, contractors and consultants alike to address acoustic issues across a wide range of industries. Each of our acoustic louvres products are cost-effectively designed to meet demanding requirements.

A typical usage for ventilation louvres would be to help reduce factory noise.

EXTERNAL LOUVRE PANELS
We design and supply acoustic external louvre panels to suit any size aperture, with larger items normally supplied in modular form for assembly on site.

With external acoustic louvre panels, fully integrated support steelwork systems can also be provided, which are designed to withstand wind loads.

ACOUSTIC LOUVRE SCREENS
Screens are a vital component of any acoustic louvre. An acoustic louvre screen reduces noise by diverting plant and generator sound away from noise-sensitive areas.

In order to ensure a quality installation and to guarantee noise reductions, our range of acoustic louvres has been independently tested by Salford University to BS ISO 10140-2:2010.

OUR ACOUSTIC LOUVRES
Standard single-bank acoustic louvres are available in depths of 150mm and 300mm, with high-performance chevron-style louvres also available at an overall thickness of 300mm and 600mm. Non-standard louvre depths can also be accommodated to suit specific applications.

Louvres can be manufactured from a variety of materials including pre-galvanized sheet steel, pre-coated / colored steel, stainless steel or aluminum.

Contained within the casing are a series of horizontally mounted blades set at a standard pitch of 150mm, filled with a dense mineral fiber acoustic insulation. Blades are formed with an integral rain lip to improve weather protection.

The acoustic insulation material is odorless, rot-proof, non-hygroscopic, does not sustain vermin and will not encourage the growth of fungi, mold or bacteria. Where products are installed in an external application, or subject to high levels of moisture, the acoustic media can be further wrapped in an acoustically transparent polyester
film.

For mechanical protection, the media is faced with a layer of perforated steel.

ACOUSTIC LOUVRE OPTIONS
Louvres can be supplied with a variety of manufacturing options to suit specific requirements:

Birdguard
Formed from welded mesh fitted to the rear of the louvre module. As a standard, the guard would be securely mounted to the louvre cassette, though can be removable where required

External flashing (normally supplied loose)
Folded sheet metal facing ‘flange’ / flashing to provide masking of an aperture around the perimeter of the louvre. Flashing finished to suit main louvre.

Mounting frames/secondary support steelwork
A variety of support frames are available where building facades are unable to support the imposed weight of an acoustic louvre.

Doors
Louvred doorsets are manufactured with louvre cartridges mounted into a steel hollow section framework for stability and integrity. Standard doorsets are supplied with a peripheral frame for fitting into a builders work opening, complete with butt hinges, a D-handle and deadlock with internal thumb turn.

Industrial/Heavy Duty
To suit demanding industrial applications louvre modules can be fabricated as full welded units for increased durability.

Penthouse Louvres
Penthouse louvres are supplied with integral support steel framework, corner flashings and pitched roof. Depending upon size, penthouse arrangements can be supplied in a single factory-assembled section for ease of installation.

FEATURES & BENEFITS

  • Pre-galvanized mild steel self color
  • Stainless steel self color
  • Polyester powder coated
  • Wet paint systems
  • Plastic coated steel
  • Semi-aerofoil blades designed to reduce pressure loss through louvres.
  • Louvre blades manufactured with integral folded rain lip.
  • Pre-galvanized or stainless steel bird mesh guards

ACOUSTIC LOUVRES FAQS

An acoustic louvre screen reduces noise by diverting plant and generator sound away from noise-sensitive areas.

Acoustic louvres, typically made of sheet metal like pre-galvanized steel, have blades filled with sound-absorbing fiber acoustic insulation. Positioned at angles, they prevent noise transmission from the source to sensitive areas, effectively reducing the overall noise level.

An acoustic louvre reduces airborne noise, while an acoustic damper suppresses structure-borne noise caused by vibrations or mechanical sources.

Louvres can be supplied with a variety of options including Birdguard, Industrial, External flashing, Folded sheet metal facing flange/ flashing, Mounting frames, louvred door sets and Penthouse in various finishes:

  • Pre-galvanized mild steel
  • Stainless steel
  • Polyester powder coated
  • Wet paint systems
  • Plastic coated steel

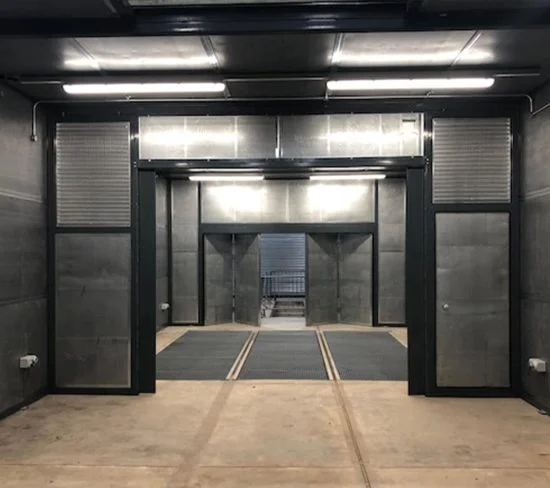

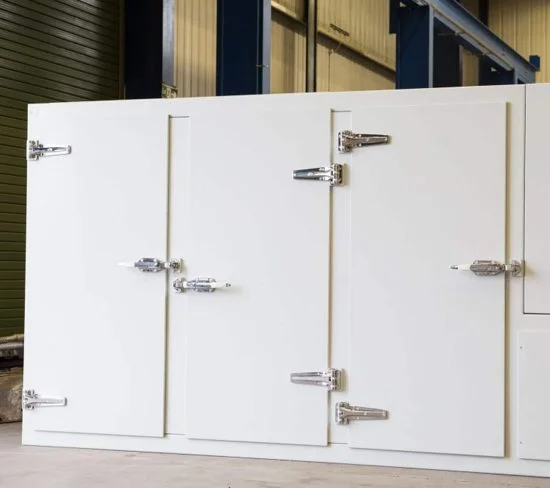

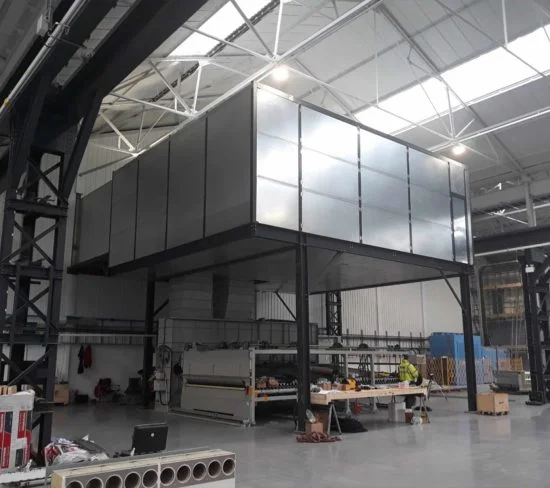

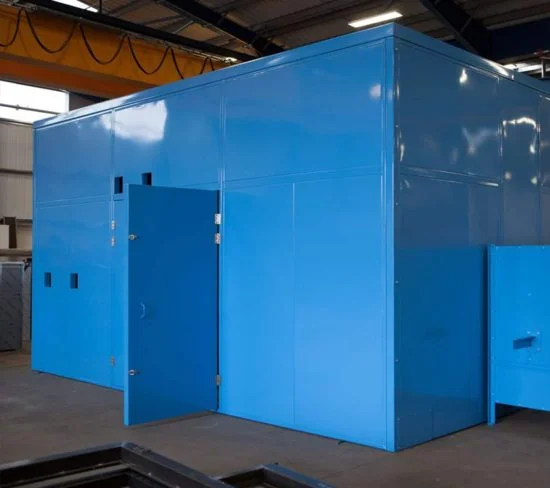

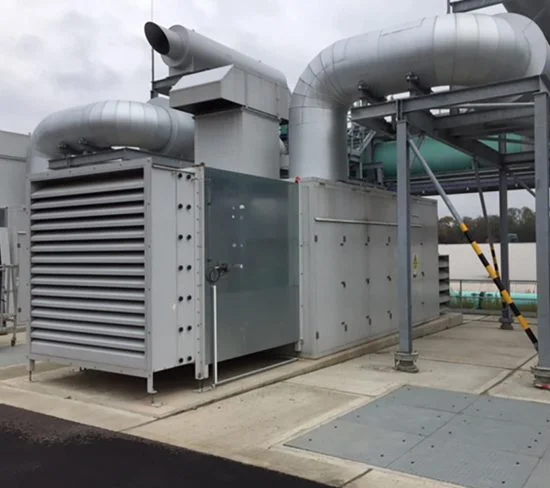

Acoustic Enclosures

Acoustic Enclosures

Wakefield Acoustics is a UK-based acoustic enclosure manufacturer with extensive experience in designing, manufacturing and installing soundproof acoustic enclosures and industrial noise control solutions.

NOISE ENCLOSURES
From standard proprietary models through to custom-designed full turn-key solutions, we work closely with OEMs, end users, contractors and consultants to address complex noise problems across a wide range of industries, applications and noise sources.

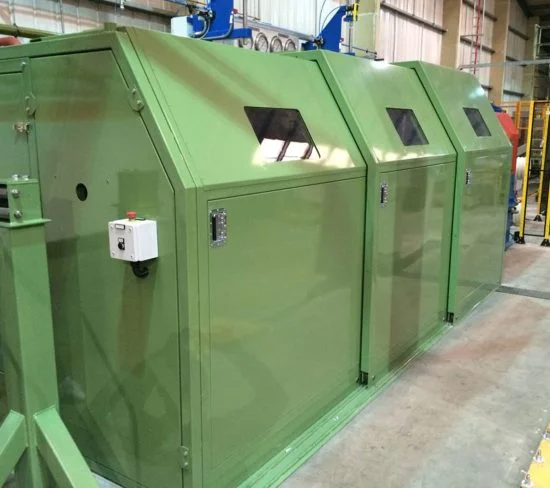

Our experience ranges from close-fitting enclosures for fans, condensing units and pumps to large CHP and gas and diesel generator acoustic enclosures.

COMPRESSOR ACOUSTIC ENCLOSURES
Our acoustic enclosures are well suited to reduce noise from industrial air compressors, both inside and outside, often used alongside other products like Acoustic Louvres. Compressor acoustic enclosures can be manufactured in a range of sizes, thicknesses and bespoke specifications.

GENERATOR ACOUSTIC ENCLOSURES
Using a soundproof generator enclosure is the best way to address the challenges presented by noisy gas and diesel generators.  Our experienced engineers can provide generator acoustic enclosure design for projects of all sizes across a range of industries and sectors.

ACOUSTIC ENCLOSURE DESIGN
As acoustic enclosure design experts, each soundproof acoustic enclosure is cost-effectively designed to meet the most demanding of customer noise specifications often associated with complex application, access and/or environmental challenges.

SOUND ENCLOSURE PANELS
All of our acoustic enclosures are built using tested sound enclosure panels which provide effective noise insulation.

Depending on noise specification, customer application, access and structural requirements we offer several types of enclosures from site-installed modular constructions, fully framed fabrications and one-piece drop-over units.

OUR ACOUSTIC ENCLOSURES
Our enclosures are available with panel thicknesses of 50mm, 75mm and 100mm as standard, though thicker panels can be designed for specific applications where a higher level of noise reduction, or increased absorption is a necessity.

Acoustic enclosures can be manufactured from a variety of materials including pre-galvanized sheet steel, precoated/colored steel, stainless steel or aluminum. The outer panel casing is formed from a folded steel tray, which fully encapsulates a layer of absorptive acoustic media (mineral wool) and sound-deadening layers.

The acoustic media is faced with a glass fiber scrim as standard and protected by a perforated steel sheet.

Acoustic insulation materials are odorless, rot-proof, non-hygroscopic, do not sustain vermin and will not encourage the growth of fungi, mold or bacteria.

INDUSTRIAL ACOUSTIC ENCLOSURES
Our range of acoustic enclosures is designed and manufactured to meet both noise reduction specifications and client-specific access and maintenance requirements. In order to create a full enclosure, acoustic panels are mounted into a support system designed specifically to suit access or maintenance requirements.

Small close-fitting enclosures would be normally be formed using a bolted panel-to-panel construction. Large acoustic canopies and screens would comprise of a skeleton frame fabricated from steel hollow sections or beams, with panels retained by bolted cleat plates or a series of folded C-channels and H-sections depending on future access requirements.

In addition, acoustic enclosures can be provided with lighting, electrical systems and fire and gas detection systems in line NORSOK specifications.

FEATURES & BENEFITS

  • Pre-galvanized mild sheet steel, stainless steel 304 and 316L
  • Wide range of access and viewing options including single and double leaf, hinged and sliding doors for access and a wide range of glazed viewing panels
  • Natural, free-flow ventilation systems or fan assisted ventilation systems to provide cooling for equipment. Ventilation systems can be supplied with ATEX certification where required.
  • Internal lighting, heating, air conditioning and electrics
  • Lifting provisions including mechanical lifting lugs
  • Structural engineering (including wind loads)
  • Full electrical fit outs
  • Fire and gas detection and suppression systems
  • Project Management
  • Finite Element Analysis and capability to design to onerous blast loads
  • Our enclosure range has been tested to ISO EN 11546-1 2009 and thus we are able to offer accurate performance data for close fitting enclosure applications
  • VARIOUS FINISHES INCLUDING:
    • Polyester powder coating
    • Epoxy
    • Wet paint systems
    • All available in a range of colors
    • Plastic coated steel

ACOUSTIC ENCLOSURES FAQS

An acoustic enclosure, also known as a sound or noise enclosure or soundproof enclosure, refers to soundproof chambers to either contain or prevent the transmission of noise. These enclosures come in various sizes, ranging from small and portable units to large-scale structures.

Our experience ranges from close-fitting enclosures for fans, condensing units and pumps to large CHP and gas and diesel generator acoustic enclosures.

Ideally, the acoustic enclosure would reduce noise levels below 80 dB (A), which is the lower exposure action value of the current Control of Noise at Work Regulations in the UK.

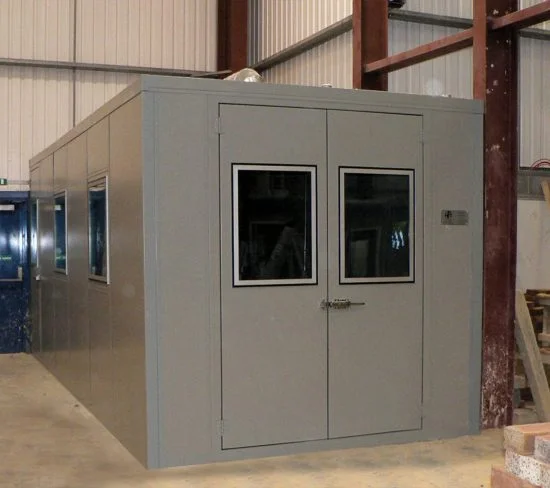

Acoustic Doors

Acoustic Doors

SOUNDPROOF ACOUSTIC DOORS
Wakefield Acoustics supplies a range of high-performance soundproof acoustic doors offering both acoustic integrity and functionality. Our doors are normally integral to a full acoustic enclosure, though can be supplied as individual elements to fit into a builder’s work opening.

Our acoustic doors are specifically designed to meet customer’s requirements, and are supplied with perimeter frames and a range of furniture options.

ACOUSTIC SLIDING DOORS
Where space is at a premium, sliding acoustic doors can be supplied with a variety of sealing mechanisms.

To complement our range, acoustic louvred doors complete with perimeter frames are also supplied by Wakefield Acoustics. The fully louvred door ensures ventilation air for plant spaces.

ACOUSTIC DOORSETS
Doorsets can be manufactured with a variety of options including vision panels, overpanels, ventilation apertures/louvres and removable threshold bars amongst others.

FEATURES & BENEFITS

  • Single and Double Leaf doors
  • Sliding doors
  • Various construction materials such as pre-galvanized sheets and stainless steel
  • Removable transoms
  • Raised and removable thresholds
  • Variety of door furniture options including locking mechanisms and associated handles, durable hinges, door closers and panic release buttons and bars
  • Vision paneling
  • VARIOUS FINISHES INCLUDING:
    • Polyester powder
    • Epoxy
    • Wet paint systems

ACOUSTIC DOORS FAQS

Acoustic doors are designed to prevent sound from passing through a door. They are commonly used in noisy industrial environments as part of a full soundproof enclosure or can be supplied as individual elements

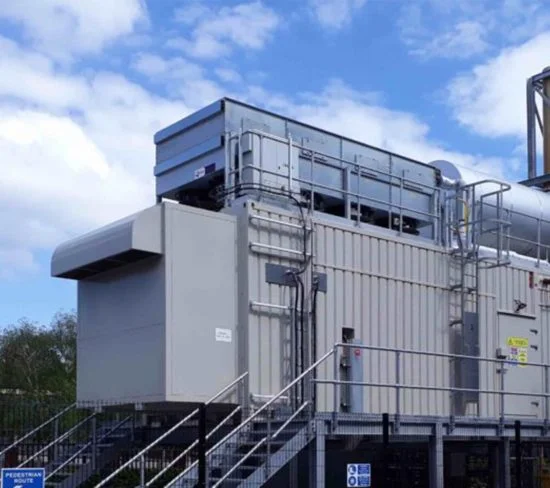

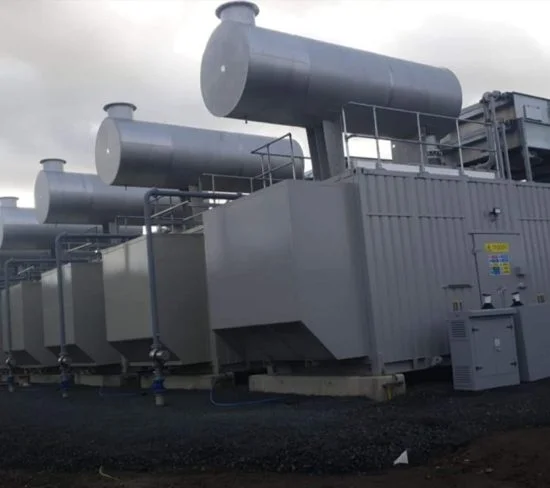

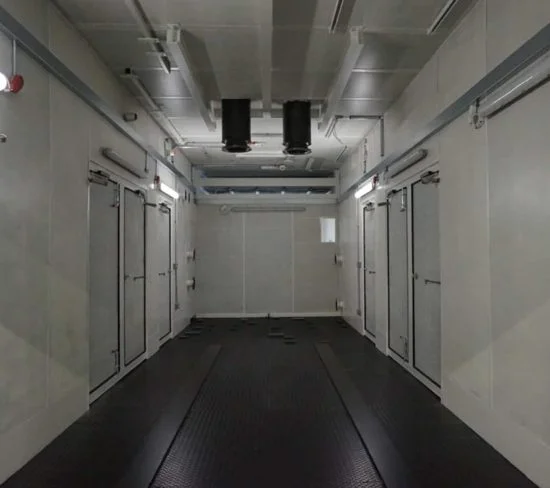

Acoustic Containers

Acoustic Containers

Wakefield Acoustics manufactures bespoke and semi-standard acoustically insulated containers for a range of industrial noise control applications. Whether the requirements are a CHP acoustic container or gas/diesel generator acoustic container, our units are designed with structural baseplate, insulated external panels and roof, and integrated ventilation systems. Lifting lugs are tested and certified to allow safe lifting complete with housed plant and equipment.

The load-bearing roof of our containers can be designed to support equipment including exhaust silencers, heat exchangers and other equipment as required.

The outer walls and roof of the containers are specifically designed to achieve project acoustic requirements. Where low noise levels are required, ratings down to 60dBA can typically be achieved with enhanced acoustic treatment, including lined base sections.

Ventilation for industrial acoustic containers can come in a variety of shapes and sizes, with roof-mounted penthouses, separate inlet ventilation pods, and standard attenuator units, all of which can be incorporated into the design.

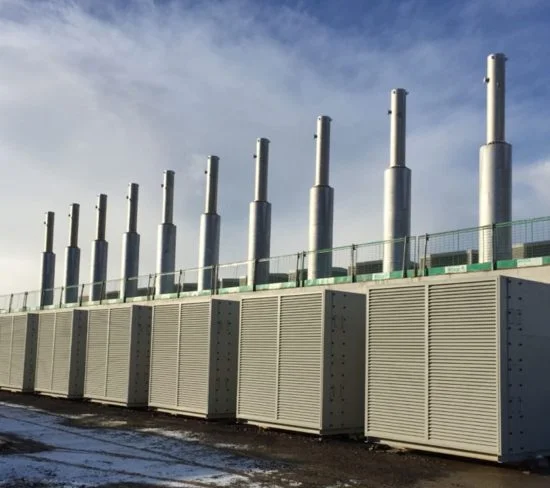

GENERATOR ACOUSTIC CONTAINERS
Maintenance facilities within a generator acoustic container can include fully tested and certified lifting beams, removable end walls or ventilation modules for major plant removal, along with double leaf access doors positioned to suit.

Wakefield Acoustics are also able to design and manufacture switchgear acoustic containers and UPS acoustic containers.

Where required, lighting, small power and fire and gas detection equipment can be installed in our works, saving vital time on site.

FEATURES & BENEFITS

  • Flat or profiled external wall profile (size and specification dependent)
  • Separate control room
  • Welded flange connection points for external services
  • Internal lighting and small power
  • Fire and Gas detection system installation
  • Ventilation systems can be provided complete with filtration, motorized / gravity dampers and weather louvres where specified by the client
  • Integral lifting beams for plant maintenance, complete with certification
  • Mounting points and brackets for roof-mounted equipment, handrailing and access equipment
